445/450nm 50mw Blue Beam Laser Module For Laser Stage Light And TTL Modulation

Certification
Good quality Green Laser Module for sales
Good quality Green Laser Module for sales
I'm Online Chat Now

445/450nm 50mw Blue Beam Laser Module For Laser Stage Light And TTL Modulation

China 445/450nm 50mw Blue Beam Laser Module For Laser Stage Light And TTL Modulation supplier
445/450nm 50mw Blue Beam Laser Module For Laser Stage Light And TTL Modulation supplier 445/450nm 50mw Blue Beam Laser Module For Laser Stage Light And TTL Modulation supplier 445/450nm 50mw Blue Beam Laser Module For Laser Stage Light And TTL Modulation supplier 445/450nm 50mw Blue Beam Laser Module For Laser Stage Light And TTL Modulation supplier

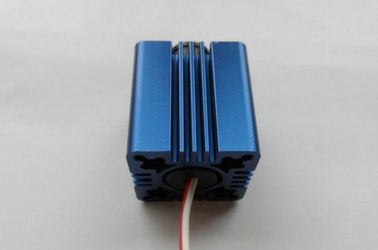

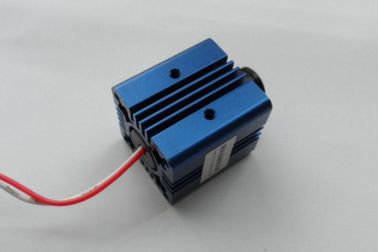

Large Image :  445/450nm 50mw Blue Beam Laser Module For Laser Stage Light And TTL Modulation

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-445AD50-BC30

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 54.4USD
Packaging Details: first in anti-static bag then in carton
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal , Western Union ,T/T , Moneygram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Wavelength: 450nm Output Power: 50mw
Material: Aluminum Operating Voltage: 3-5V
Working Current: <100mA

Such kind of products can be widely used for stage laser light, TTL modulation, can work for a long time ,it is a real industrial laser .We can provide photoelectric solutions for customers and can help design laser module to meet customers requirement.



Specifications:



Mainframe Dimension: 30mm (L)*30mm(W)*30mm(H)

Cable Length: 100±10mm

Wavelength: 450nm

Output Power: 50-60mW

Cooling Method: Aluminum Heat Sink

Performance Characteristic: Continuous Work

Surface Treatment: Blue

Material: Aluminium

Circuit Control: Constant Current

Anti-access Protection: With automatic identification of positive and negative

Operating Voltage: 3-5V

Working Current: <100mA

Warm-up Time: No
Working Temperature: -10°C~+40°C

Storage Temperature: -10°C~+40°C

Structure Features: Laser Diode + Lenses + Radiating Shell





Warning: the input voltage is 3-5V, exceeded voltage will cause the circuit and module damaged.
