445nm/450nm 50mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments

Certification
Good quality Green Laser Module for sales
Good quality Green Laser Module for sales
I'm Online Chat Now

445nm/450nm 50mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments

China 445nm/450nm 50mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments supplier
445nm/450nm 50mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments supplier 445nm/450nm 50mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments supplier 445nm/450nm 50mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments supplier 445nm/450nm 50mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments supplier 445nm/450nm 50mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments supplier

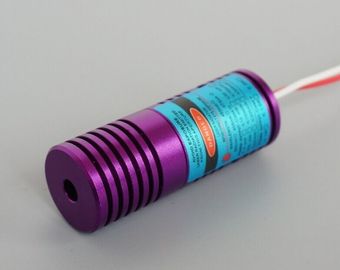

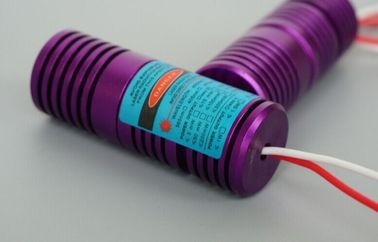

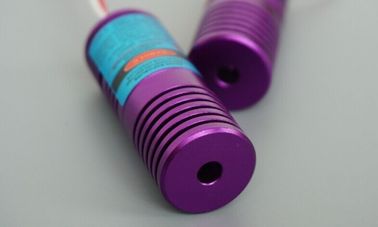

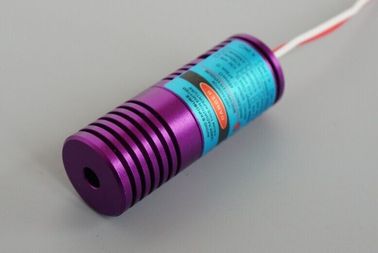

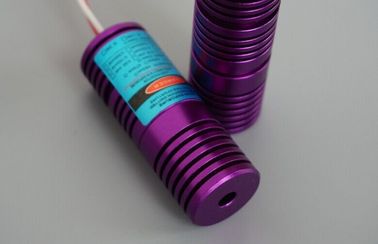

Large Image :  445nm/450nm 50mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-450C50

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 51.4USD
Packaging Details: first in anti-static bag then in carton
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal , Western Union ,T/T , Moneygram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Output Wavelength: 445nm Output Power: 45-55mw
Surface Treatment: Anode Purplish Red Material: Aviation Aluminium
Circuit Control: ACC Line Operating Voltage:: DC 5V
Operating Current: < 120mA

Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers' requirement.



Specifications:





Output Wavelength: 445nm

Output Power: 45-55mW

Surface Treatment: Anode Purplish Red

Material : Aviation Aluminium

Circuit Control: ACC Line

Anti-access Protection: Yes

Operating Voltage: DC 5V

Operating Current: < 120mA

Warm-up Time: No

Working Temperature: -10°C~+40°C

Storage Temperature: +10°C~+40°C

Dimension: 20mm (dia)*58mm(L)

Structure : Laser Diode + Lenses +  Radiating Shell



Remarks: Orange line  is Positive ,White line is Negative.



445nm/450nm 50mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments445nm/450nm 50mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments445nm/450nm 50mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments
