Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers' requirement.

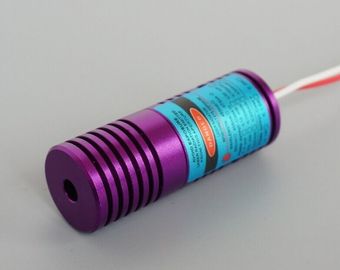

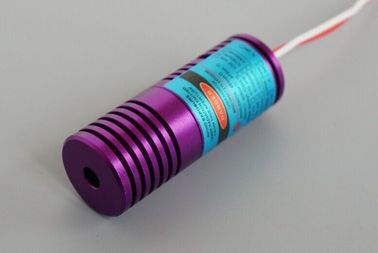

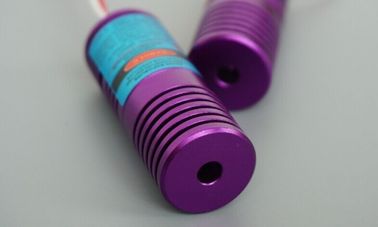

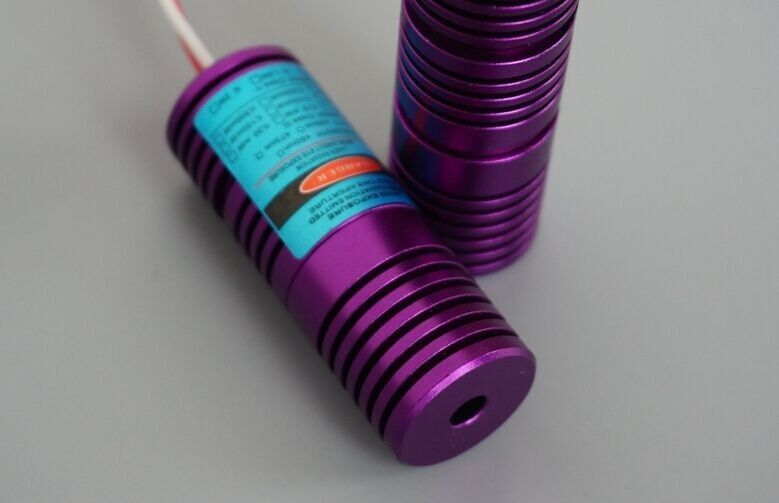

Outside Dimension: 20mm (dia)*58mm(L)
Output Wavelength: 405nm
Output Power: 90-100mW
Surface Treatment: Anode Purplish Red
Material of Outside: Aviation Aluminium
Circuit Control: ACC Line
Anti-access Protection: Yes
Operating Voltage: DC=3-5.5V
Working Current: I < 180mA
Warm-up Time: No
Working Temperature: -10°c~+40°c
Storage Temperature: +10°c~+40°c
Structure : Laser Diode + Lenses + Radiating Shell

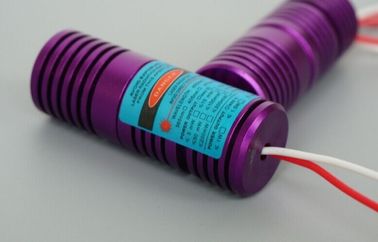

Remarks: Orange line is Positive ,White line is Negative.
