650nm 1mw Red Line Laser Module For Electrical Tools And Leveling Instrument

China 650nm 1mw Red Line Laser Module For Electrical Tools And Leveling Instrument supplier
650nm 1mw Red Line Laser Module For Electrical Tools And Leveling Instrument supplier 650nm 1mw Red Line Laser Module For Electrical Tools And Leveling Instrument supplier

Large Image :  650nm 1mw Red Line Laser Module For Electrical Tools And Leveling Instrument

Product Details:

Place of Origin: China
Certification: CE , Rohs
Model Number: GS650L1-BC9

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: 2.4USD
Packaging Details: first in anti-static bag then in carton
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal , Western Union ,T/T , Moneygram
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Wavelength: 650nm Output Power: 1mw
Operating Voltage: 3-5 V DC Operating Current: ≤35mA
Beam Type: Line

Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers’ requirement.



Specifications:



Wavelength:650nm±5nm
Output power:< 1mw
Optical Lens :PMMA lens
Beam Angle:36.5°,60°,90°,110°
Beam Type : Line

Beam Distance : < 1m
Line Width : ≤2mm at 1m distance
Line Length : 0.6m(36.5°),1.1m(60°),2.0m(90°), 2.8m(110°)
Operating Current: <50mA
Operating Voltage:DC 3-5V

Circult Control : APC
Cable Length : 150mm
Operating Temperature:-10℃~50℃
Storage Temperature:-20℃~60℃

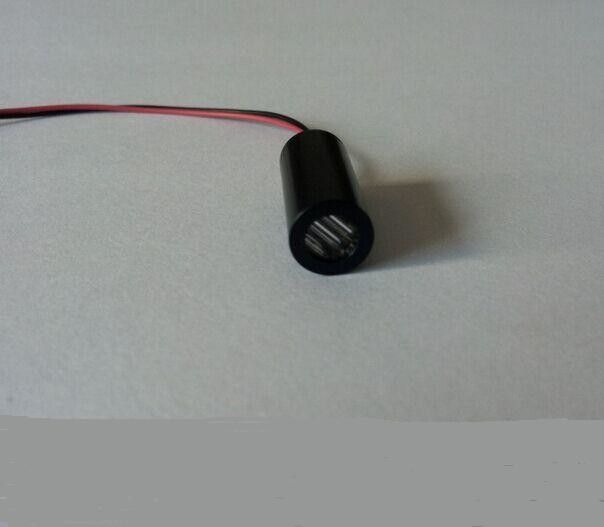

Dimensions: Φ9×21mm
MTTF:>10000 hours
Warranty:1 year



650nm 1mw Red Line Laser Module For Electrical Tools And Leveling Instrument650nm 1mw Red Line Laser Module For Electrical Tools And Leveling Instrument650nm 1mw Red Line Laser Module For Electrical Tools And Leveling Instrument
