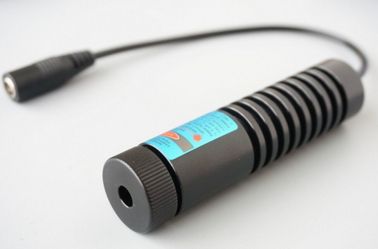

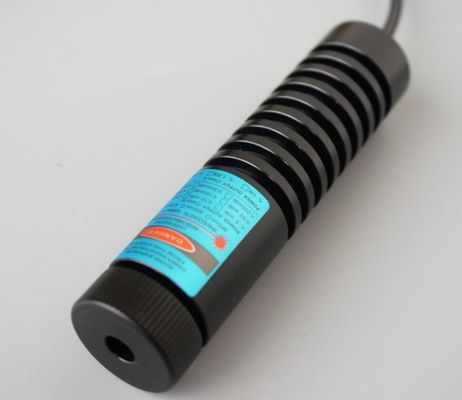

445nm/450nm 1000mW Blue Dot Beam Laser Module For Electrical Tools And Leveling Instruments
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Output Wavelength: | 445-450nm | Output Power: | 1000mw |
|---|---|---|---|
| Surface Treatment: | Anode Purplish Black | Material: | Aviation Aluminium |
| Circuit Control: | ACC | Operating Voltage:: | DC 12V |
| Operating Current: | < 600mA |
Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers' requirement.
Specifications:
Output Wavelength: 445-450nm
Output Power: 1000mW
Surface Treatment: Anode Purplish Black
Material : Aviation Aluminium
Circuit Control: ACC
Anti-access Protection: Yes
Operating Voltage: DC 12V
Operating Current: < 600mA
Warm-up Time: No
Working Temperature: -10°C~+40°C
Storage Temperature: +10°C~+40°C
Dimension: 22mm (dia)*90mm(L)
Structure : Laser Diode + Lenses + Radiating Shell
Power Supply : DC 12V ,can be used on 220V socket directly.
