Such kind of products can be widely used for stage laser light, TTL modulation, can work for a long time ,it is a real industrial laser .We can provide photoelectric solutions for customers and can help design laser module to meet customers requirement.
Mainframe Dimension: 69mm (L)*30mm(W)*30mm(H)
Power Supply Dimension: 47.5mm (L)*31.5mm(W)*16mm(H)
Output Wavelength: 445nm
Output Power: 1.6-2W
The Way of Cooling: Aluminum Radiator
Size of Light-spot: Adjustable Focusing
Performance Characteristic: Continuous Work
Surface Treatment: Blue
Material of Outside: Aluminium
Circuit Control: Constant Current
Anti-access Protection: Identify the Positive and Negative Automatically
Operating Voltage: DC=12V
Working Current: I < 1.7A
Warm-up Time: No
Working Temperature: -10°c~+40°c
Storage Temperature: -10°c~+40°c

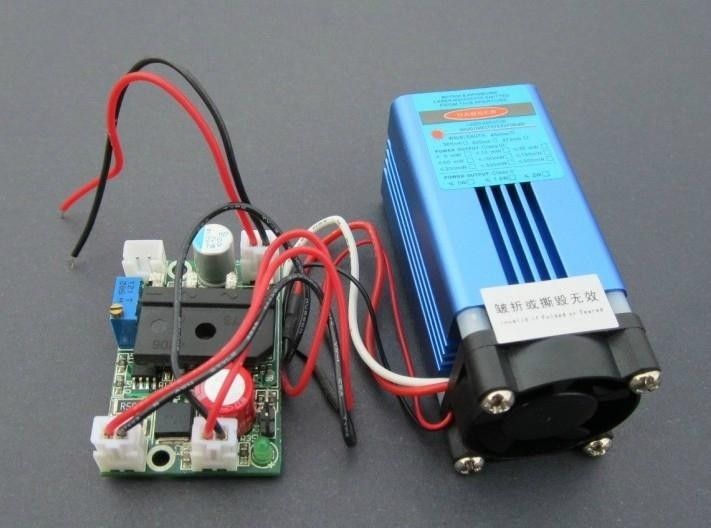

Structure Features: Laser Diode + Lenses + Radiating Shell
Remarks:Power Supply is extenal.
Warning: the input voltage is 12V, exceed 12V will cause the circuit and module damaged.
