445/450nm 50mw Blue Beam Laser Module For Laser Stage Light And TTL Modulation

Such kind of products can be widely used for stage laser light, TTL modulation, can work for a long time ,it is a real industrial laser .We can provide photoelectric solutions for customers and can help design laser module to meet customers requirement.

Specifications:

Mainframe Dimension: 30mm (L)*30mm(W)*30mm(H)

Cable Length: 100±10mm

Wavelength: 450nm

Output Power: 50-60mW

Cooling Method: Aluminum Heat Sink

Performance Characteristic: Continuous Work

Surface Treatment: Blue

Material: Aluminium

Circuit Control: Constant Current

Anti-access Protection: With automatic identification of positive and negative

Operating Voltage: 3-5V

Working Current: <100mA

Warm-up Time: No
Working Temperature: -10°C~+40°C

Storage Temperature: -10°C~+40°C

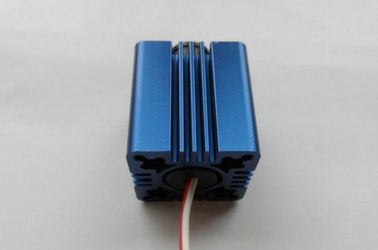

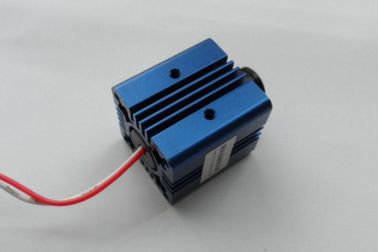

Structure Features: Laser Diode + Lenses + Radiating Shell

Warning: the input voltage is 3-5V, exceeded voltage will cause the circuit and module damaged.
