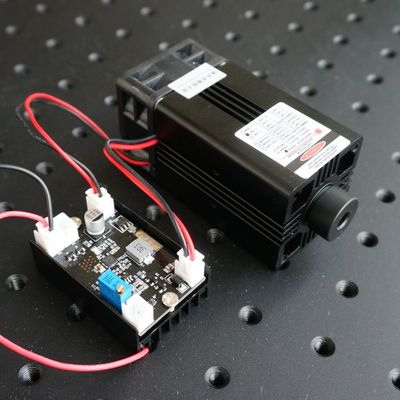

445/450nm 3.5W Blue Beam Laser Module (NDB7A75)With TTL Modulation For Laser Stage Lights

Such kind of products can be widely used for stage laser light, TTL modulation, can work for a long time ,it is a real industrial laser .We can provide photoelectric solutions for customers and can help design laser module to meet customers requirement.

Specifications:

Mainframe Dimension: 81.5mm (L)*40mm(W)*40mm(H)

Power Supply Dimension: 50mm (L)*32.5mm(W)*24.5mm(H)

Wavelength: 445nm

Output Power: 3.5W

Cooling Method: Aluminum Heat Sink

Modulation Frequency:adjustable 0-150kHz

Performance Characteristic: Continuous Work

Surface Treatment: Blue

Material: Aluminium

Circuit Control: Constant Current

Anti-access Protection: With automatic identification of positive and negative

Operating Voltage: 12V

Working Current: <4A

Warm-up Time: No
Working Temperature: -10°C~+40°C

Storage Temperature: -10°C~+40°C

Structure Features: Laser Diode + Lenses + Radiating Shell

Remarks: Power supply is external

Warning: the input voltage is 12-14V, exceeded voltage will cause the circuit and module damaged.
