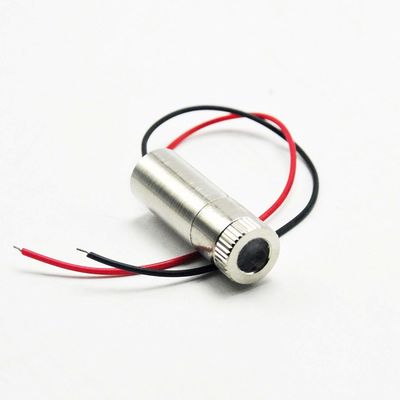

650nm 20mw Red Dot Laser Diode Module For Electrical Tools And Leveling Instrument
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Wavelength: | 650nm | Output Power: | 20mw |
|---|---|---|---|
| Beam Type: | Dot | Operating Voltage: | 3V |
Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers’ requirement.
Specifications:
Wavelength:650nm/±5nm
Output power:<20mw
Material : Bronze or Aluminum
Optical Lens :glass lens
Operating Voltage:DC 2.8-3.7V
Operating Current:≤100mA
Beam Type : Dot
Dot Size :minimum dot diamater ≤1.0mm ,<12mm at 10m distance.
Circuit Control : APC
Dimensions:Φ12×35mm
Operating Temperature:-10℃～50℃
Storage Temperature:-20℃～70℃
MTTF: Continous output ,>10000 hours
Warranty:1 year
