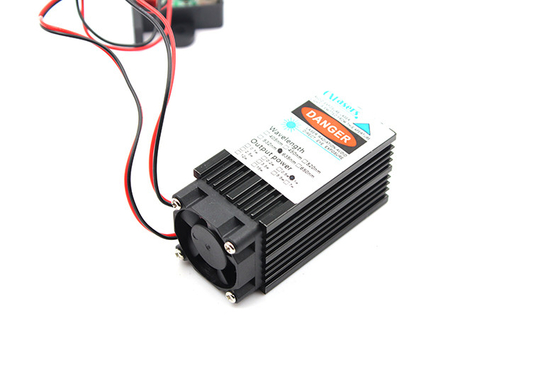

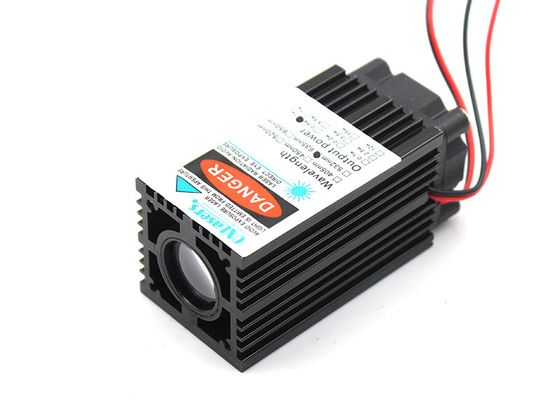

638nm 1W High Power 12V 1A Thick Beam Red Laser Module With Cooling Fan
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Wavelength: | 638nm | Output Power: | 1W |
|---|---|---|---|
| Material: | Aluminum Alloy | Operating Voltage: | 12V |
| Working Current: | 1A |
Such kind of products can be widely used for laser engraving ,stage laser light, TTL modulation, can work for a long time ,it is a real industrial laser .We can provide photoelectric solutions for customers and can help design laser module to meet customers requirement.
Specifications:
Output wavelength : 635-638nm (ORANGE RED)
Output power : 800-900mw
Electric power : 4W
Material : aluminum alloy
Beam divergence full angle (mrad) : <1.0
Beam diameter at the aperture (mm) 6-8mm
Operating Voltage : 110~250V to DC 12V
Working current : < 1A
Power stability (rms, over 6 hours) :<5%
Lifepan : >6000hours
size : 33x33x70mm
Warranty period : 1year

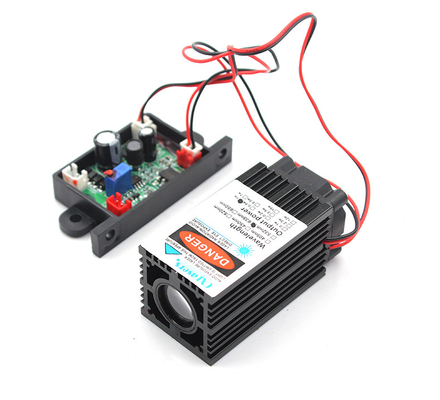

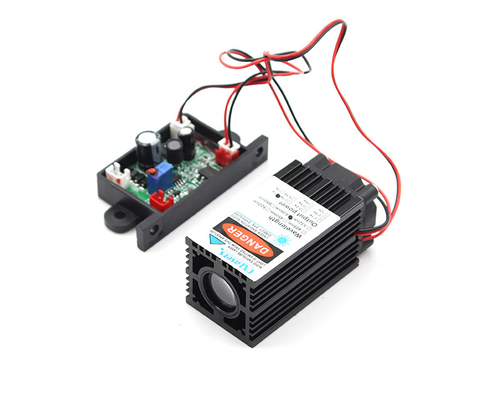

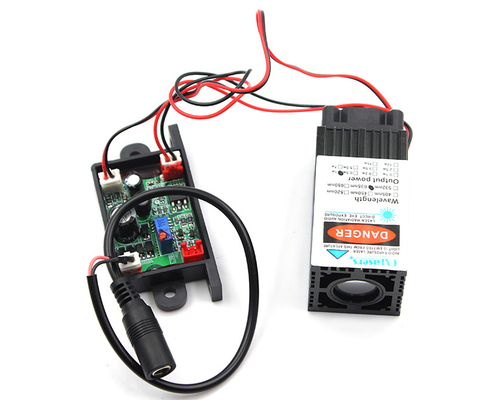

packing list:
1x laser module
1x 12V DC adapter
1x DC-2 pin connector
1x 2 pin wire
