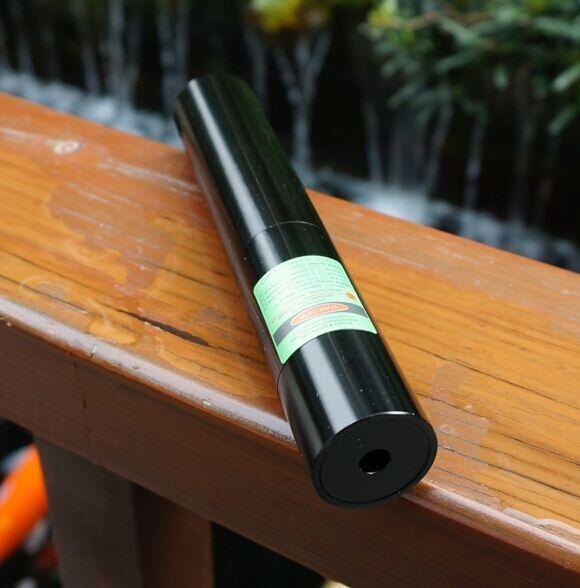

520nm 1000mW Green Beam Laser Flashlight

Certification
Good quality Green Laser Module for sales
Good quality Green Laser Module for sales
I'm Online Chat Now

520nm 1000mW Green Beam Laser Flashlight

China 520nm 1000mW Green Beam Laser Flashlight supplier
520nm 1000mW Green Beam Laser Flashlight supplier 520nm 1000mW Green Beam Laser Flashlight supplier 520nm 1000mW Green Beam Laser Flashlight supplier 520nm 1000mW Green Beam Laser Flashlight supplier 520nm 1000mW Green Beam Laser Flashlight supplier

Large Image :  520nm 1000mW Green Beam Laser Flashlight

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-G5200

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 598USD
Packaging Details: Color Box
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Western Union or T/T
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description

Specification :




Outside Dimension: 25*mm(Dia) x 145mm(L)

Surface Treatment: Black Anodize

Material of Outside: Aerospace Aluminum 6063

Output Wavelength: 510-530nm

Center Wavelength: 520nm

Output Power: 1000mW Class IV

Circuit Control: Step-down voltage with reverse connection protection

Light-spot Shape: Punctiform

Light Beam Style: Continuous Lineal

Light-spot Size: at the distance of 10 metres less than 13mm(dia)

Focusing Mode: Adjustable Focusing

Working Current: 8.4V@ 1A

Operating Voltage: DC=7.4V

Starting Voltage: DC=5.8V

Warm-up Time: No

Working Temperature: -10°c~+60°c

Storage Temperature: -10°c ~+40°c

Power Supply Mode: 2pc ICR18350 lithium battery

Package : Color Box,

Remark: The price include a flashlight,2pcs battery and a charger.




Operation Guide:



1, Install the battery into flashlight per" - towards the taillock, + backwards the taillock" (Do not Reverse Polarity), lock the tailstock and press ON/OFF button to light it.

2, It is suggested that continuous working time never more than 30 Seconds,for stable capability 3.7V Lithium Battery is recommended.

3, If you choose adjustable focusing function, rotate the head holder to adjust the focus, Focus range is from 1cm to infinite.



Notice:



1, Never point the Laser beam to the eyes of human beings and animals in using.

2, Avoid any of impact or shake which will cause the irreparable damage of lasers? optical system.

3, Please keep away from the children, If necessary, please operate under the guide of grown-up.

4, Please do not use the laser exceed temperature of 35°c or under 0°c, which will speed up the aging of the product.

5, Never use any unsuitable battery as power supply since the over voltage will damage the flashlight.

6, Please take out the battery and keep it in the anti-static & damp-proof place if not use it for a long time.
