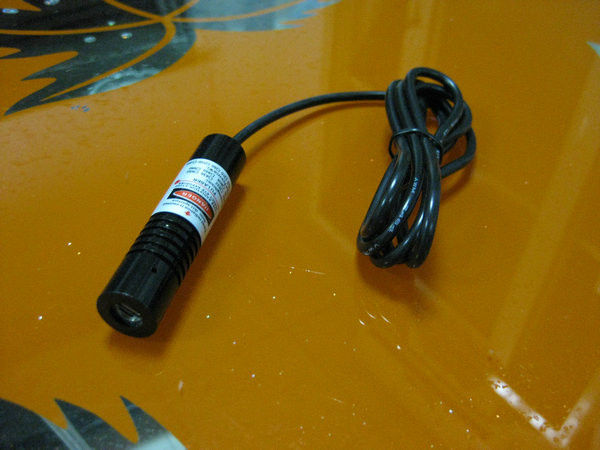

635nm 5mw Red Small Cross Line Laser Module For Sewing Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Wavelength: | 635nm | Output Power: | 0.4-5mw |
|---|---|---|---|
| Operate Voltage: | DC 2.8-5.0 V |
Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers’ requirement.
Specification :
| Wavelength: 650nm Output power: 0.4-5mw Operate Voltage: DC 2.8-5.0 V Operate current: <45mA Opto Mode: Cross line Line length: 7cm at 30cm Line thickness: 1mm at 30cm Dimension: φ12*60mm Wire length: 120mm*2(Red+Black AWG 26#) or 120cm connector wires Divergence angle: 0.5-2.0mrad Wave: Visible laser Operate Mode: Continuous laser Operate media: Semi-conductor laser Expected Lifetime: 5000-8000 Hours |
