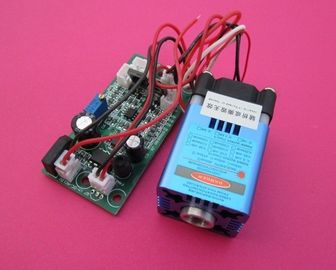

445/450/447nm 50mW Blue Beam Laser Module For Laser Stage Light And TTL Modulation
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Wavelength: | 450nm | Output Power: | 50mw |
|---|---|---|---|
| Material: | Aluminum | Operating Voltage: | 12V |
| Working Current: | 120mA |
Such kind of products can be widely used for stage laser light, TTL modulation, can work for a long time ,it is a real industrial laser .We can provide photoelectric solutions for customers and can help design laser module to meet customers requirement.
Specifications:
Mainframe Dimension: 50mm (L)*30mm(W)*30mm(H)
Power Supply Dimension: 71.5mm (L)*35.5mm(W)*16mm(H)
Wavelength: 450nm
Output Power: 50mW
Cooling Method: Aluminum Heat Sink
Frequency of Modulation: Modulation
Performance Characteristic: Continuous Work
Surface Treatment: Blue
Material: Aluminium
Circuit Control: Constant Current

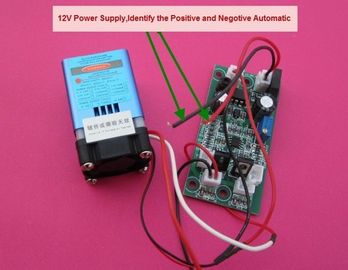

Anti-access Protection: With automatic identification of positive and negative
Operating Voltage: 12V
Working Current: 120mA
Warm-up Time: No
Working Temperature: -10°C~+40°C
Storage Temperature: -10°C~+40°C
Structure Features: Laser Diode + Lenses + Radiating Shell
Remarks: Power supply is external
Warning: the input voltage is 12V, exceed 12V will cause the circuit and module damaged.
