445nm/450nm 500mW Blue Beam Laser Module For Electrical Tools And Leveling Instruments
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Wavelength: | 445nm | Output Power: | 450-550mw |
|---|---|---|---|
| Circuit Control: | ACC Line | Operating Voltage: | DC 12V |
| Operating Current: | < 800mA |
Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers' requirement.
Specifications:
Wavelength: 445nm
Output Power: 450-550mw
Surface Treatment: Anode Purplish Red
Housing Material : Aviation Aluminium
Circuit Control: ACC Line
Anti-access Protection: Yes
Operating Voltage: DC 12V
Operating Current: < 800mA
Warm-up Time: No
Working Temperature: -10°C~+40°C
Storage Temperature: +10°C~+40°C
Dimension: 20mm (dia)*58mm(L)

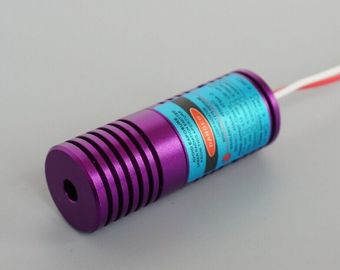

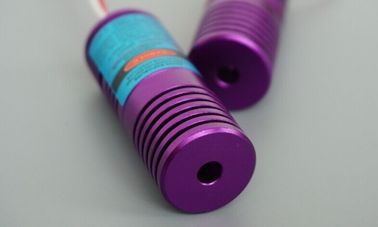

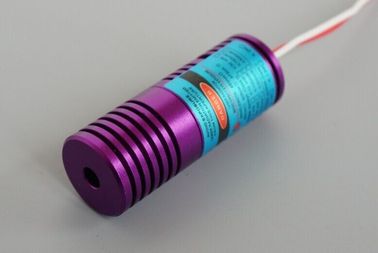

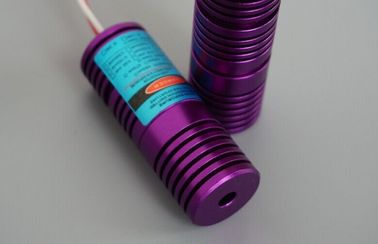

Structure : Laser Diode + Lenses + Radiating Shell

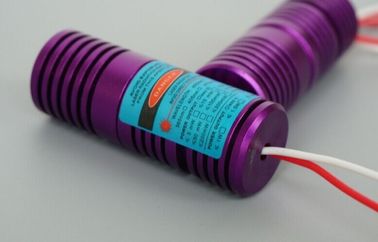

Remarks: Orange line is Positive ,White line is Negative.
