Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers’ requirement.
Specification :
Wavelength:405nm±5nm
Output Power :< 50mw
Material:Aluminum
Max Operating Current: <100MA
Operating Voltage:DC=6V (with built-in electronic constant output PCB drive, adopt intelligent IC program control for better stability ,can start with two AAA batteries)
Operating Temperature :-10℃~+70℃
Storage Temperature :-20℃~+60℃
Circuit Control:ACC Constant Circuit
Laser Color: Violet
Optical Lens: A grade PMMA lens
Beam Type: round dot
Beam Size :about 2mm at 1m distance ,about 5mm at 10m distance .

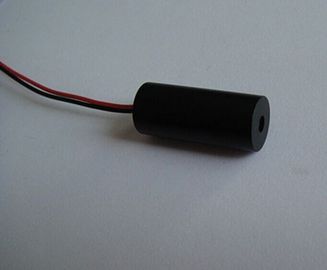

Dimension:φ10*30mm
Life Time :>10000 hours
Cable:150mm red and black wire.(red line is positive ,black wire is negative )
