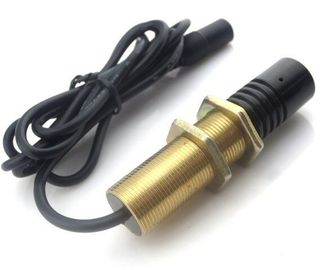

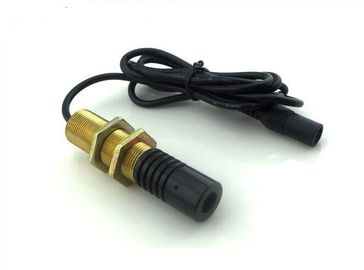

M16*1 650nm 50mw Red Dot Line Cross Line Laser Diode Module With Screw Thread For Electrical Tools
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Wavelength: | 650nm | Output Power: | ≤50mw |
|---|---|---|---|
| Operating Voltage: | 2.8-5.0V | Operating Current: | ≤150mA |
Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers’ requirement.
Specifications:
Wavelength: 650nm
Output power: ≤50mw
Optical Lens : hlass lens
Operating voltage: 2.8-5.0V
Operating current: ≤150mA
Circuit : APC
Beam Type : dot , line or cross line , optional

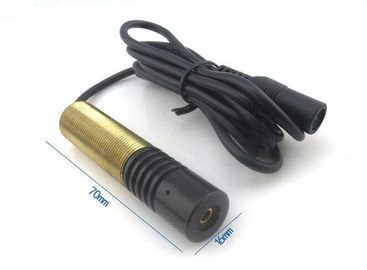

Dimension: φ16*70mm
Operating temperature: -10-40°C
Storage temperature: -40-80°C
Life time : ≥8000 hours
