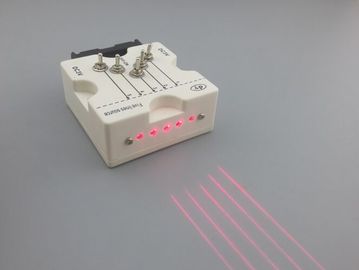

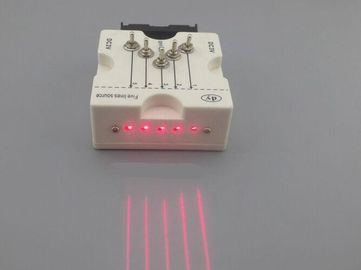

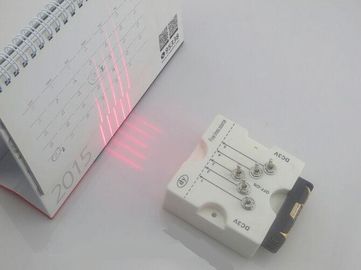

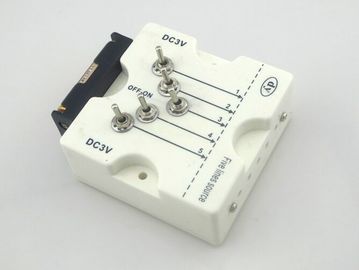

650nm 30mw Five Red Parallel Line Laser Diode Module For Electrical Tools And Leveling Instruments
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Wavelength: | 650nm | Output Power: | 5*6mw=30mw |
|---|---|---|---|
| Operating Voltage: | 3.0V | Operating Current: | ≤150mA |
Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers’ requirement.
Specifications:
Wavelength: 650nm
Output power: 5*6mw=30mw
Optical Lens : hlass lens
Operating voltage: 3.0V (powered by 2x AA batteries)
Operating current: ≤150mA
Circuit : APC

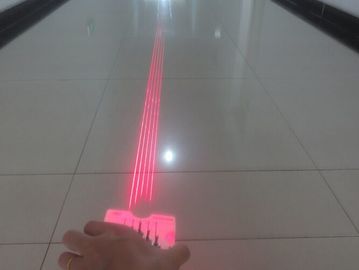

Beam Type : five parallel lines
Parallel lines spacing : 10mm

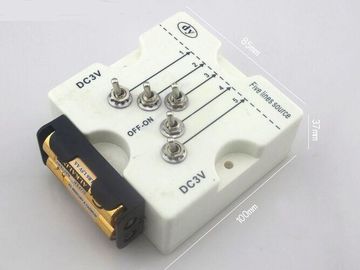

Dimension: 100*85*37mm(including battery case)
Operating temperature: -10-40°C
Storage temperature: -40-80°C
Life time : ≥8000 hours
