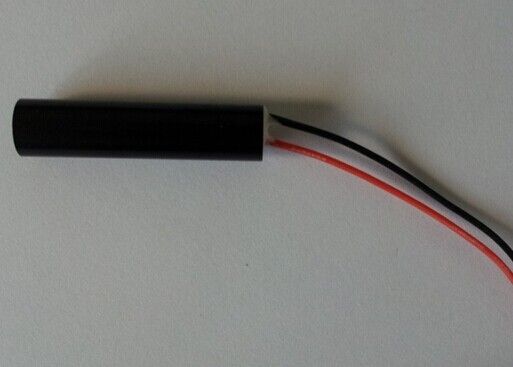

532nm 5mw Green Line Laser Module For Electrical Tools And Leveling Instrument
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Aluminum | Wavelength: | 532nm |
|---|---|---|---|
| Output Power: | 5mw | Beam Type: | Line |
Features:
Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers’ requirement.
Specifications:
Wavelength:532nm±5nm
Output power:< 5mw
Optical Lens :PMMA lens
Laser class:ClassⅢA
Beam Type : Line
Beam Angle (Line Length) : 36.5°(0.6m) ,60°(1.1m) ,90°(2m) or 110°(2.8m)
Line Width : <3mm at 1m distance
Operating Current: <280mA
Operating Voltage:DC 3V
Operating Temperature:10℃～40℃
Storage Temperature:-20℃～60℃
Dimensions:Φ12×50mm
MTTF:5000 hours
Warranty:1 year
