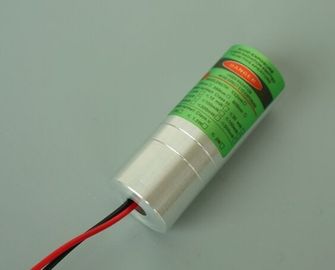

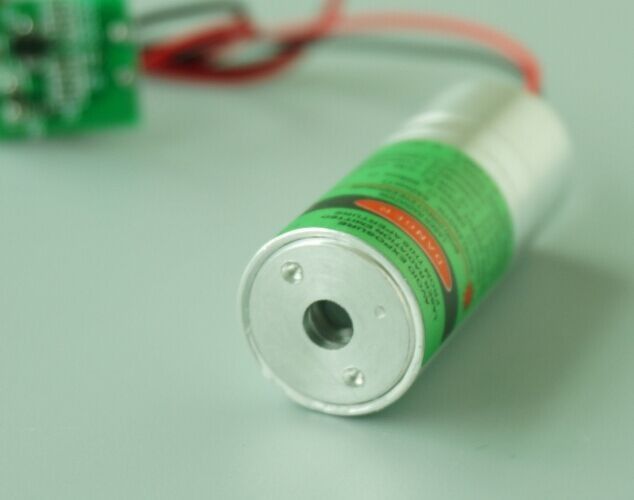

532nm 100mw Good Heat Dissipation Continuous Work Green Dot Beam Laser Module

Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers's requirement.

Specifications:

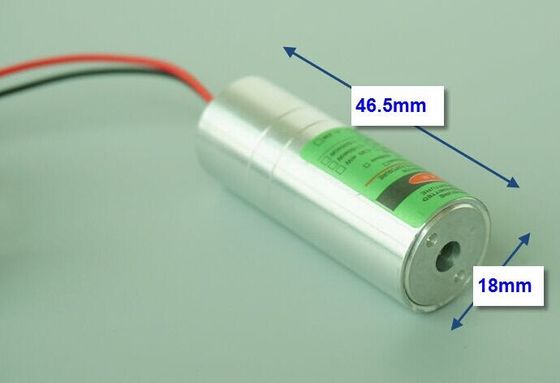

Mainframe Dimension: 46.5mm (L)*18mm(dia)

Output Wavelength: 532nm

Output Power: 100mW

Performance Characteristic: Continuous Work

Surface Treatment: Aluminium Color

Material of Outside: Aluminium

Anti-access Protection: Yes

Operating Voltage: DC=3.7-4.2V

Working Current: I < 350mA

Warm-up Time: No

Working Temperature: -10℃~+40℃

Storage Temperature: +10℃~+40℃

Structure Features: Laser Diode + Lenses + Radiating Shell

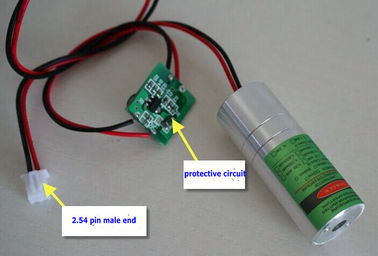

Remarks: With 2.54 Pin male end
