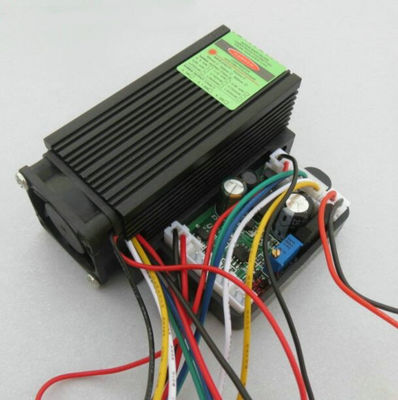

Industrial Grade Constant Current 532nm 200mW Green Beam Laser Module Laser Stage Light With Anti-access Protection
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Wavelength: | 532nm | Output Power: | 190-230mW |
|---|---|---|---|
| Housing Material: | Aluminum | Circuit Control: | Constant Current |
| Highlight: | green laser module,200 laser module,532nm laser module |
||
Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers’ requirement.
Specifications:
Output Wavelength: 532nm
Output Power: 190-230mW
Surface Treatment: Black
Housing Material : Aluminium
Circuit Control: Constant Current
Anti-access Protection: Yes
Operating Voltage: AC/DC=12V
Working Current: I < 850mA
Cooling Method : air cooling
Modulation Frequence : TTL 0-30 KHZ
Warm-up Time: No
Mainframe Dimension: 61mm (L)*40mm(W)*40mm(H)
Power Supply Dimension: 47mm (L)*31mm(W)*22mm(H)
Working Temperature: -10℃~+40℃
Storage Temperature: +10℃~+40℃
Structure Features: Laser Diode + Lenses + Radiating Shell
Remarks: Power supply and laser head are separated, the laser head assemble with fan cooling.
