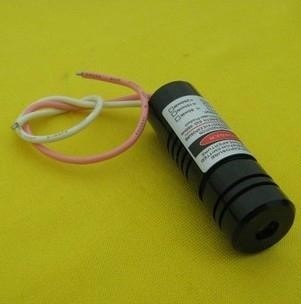

Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers’ requirement.
Outside Dimension: 14.5mm (dia)*45mm(L)
Output Wavelength: 405nm
Output Power: 280-300mW
Surface Treatment: Anode Black/Amy Green
Material of Outside: Aviation Aluminium
Circuit Control: ACC Line
Anti-access Protection: Yes
Operating Voltage: DC=3-5V
Working Current: I < 400mA
Warm-up Time: No
Storage Temperature: +10°c~+40°c
Structure Features: Laser Diode + Lenses + Transformer
Remarks: Orange line is Positive ,White line is Negotive.
It is so easy to light a cigar by using this laser module, when the beam ray on the paper it will out a cloud of light smoke immediately. But be careful not to point the laser beam to the eyes of human beings and animals in using.
