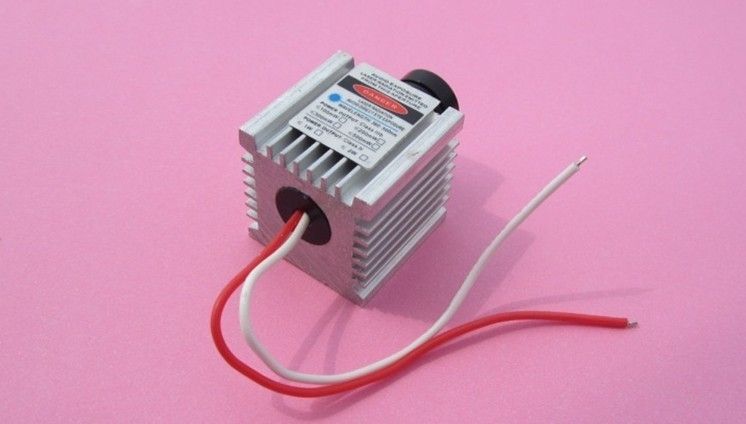

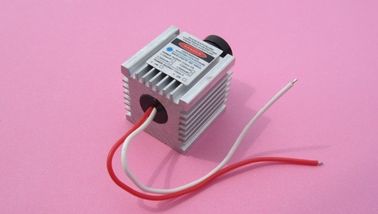

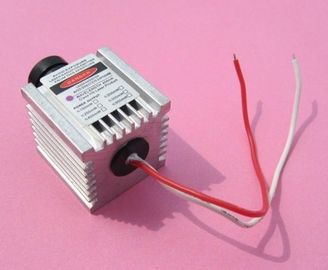

405nm 200mW Adjustable 3-5V Input Focusing Violet Beam Laser Module

Features :

1, Good structure design of cooling, the best combination of copper & aluminum, smaller, easy to  heat dissipation, long time working conditions;

2, Use the built-in 3-5V constant current drive circuit, 3-5V input can achieve constant power, integration design of light and circuit;

3, Adopt external focusing design, rotate the head holder can achieve the light-spot size for different distance , to meet the requirements of different working distance;

4, The wire we choose is silicone wire, it is the best quality in current market and it is shaped, you don’t need worry about that the wire will spoil when you weld .

Such kind of products can be widely used for stage laser light, TTL modulation, can work for a long time ,it is a real industrial laser .We can provide photoelectric solutions for customers and can help design laser module to meet customers requirement.


Specifications:

Mainframe Dimension: 29mm (L)*29mm(W)*29mm(H)

Wire Length: 100mm (L)±10mm

Material of Wire: Silicone,high and low temperature proof

Output Wavelength: 405nm

Output Power: 185-210mW

The Way of Cooling: Aluminium Radiator

Size of Light-spot: Adjustable Focusing

Performance Characteristic: Continuous Work

Surface Treatment: Aluminium Grey

Material of Outside: Aluminium

Circuit Control: Constant Current

Anti-access Protection: Yes ,Red is positive and White is negative,reverse is not bright

Operating Voltage: DC=3-5V

Working Current: I < 260mA

Warm-up Time: No
Working Temperature: -10°c~+40°c

Storage Temperature: -10°c~+40°c

Structure Features: Laser Diode + Lenses + Radiating Shell

Remarks: Internal with constant current circuit, only need to input 3-5V power can work, when test one 3.7V lithium battery can supply power.

Warning: the input voltage is 12V, exceed 12V  will cause the circuit and module damaged.
