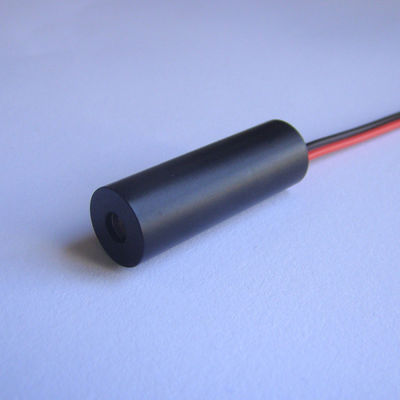

808nnm 100mw Focusable IR Dot Laser Module For Electrical Tools And Leveling Instrument
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Bronze Or Aluminum | Wavelength: | 808nm |
|---|---|---|---|
| Output Power: | 100mw | Beam Type: | Dot |
Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers’ requirement.
Specification:
Wavelength:808nm/±5nm
Output power:<100mw
Material : Bronze or Aluminum
Beam Divergence:<1.0mrad
Optical Lens :glass lens
Operating Voltage:DC 2.8-3.5V
Operating Current:≤200mA
Circult Control : APC
Beam Type : Dot
Dot Size :minimum dot diamater ≤1.0mm ,<25mm at 10m distance.
Dimensions:Φ10×30mm
Operating Temperature:-10℃～50℃
Storage Temperature:-20℃～70℃
MTTF: Continous output ,>6000 hours
Warranty:1 year
