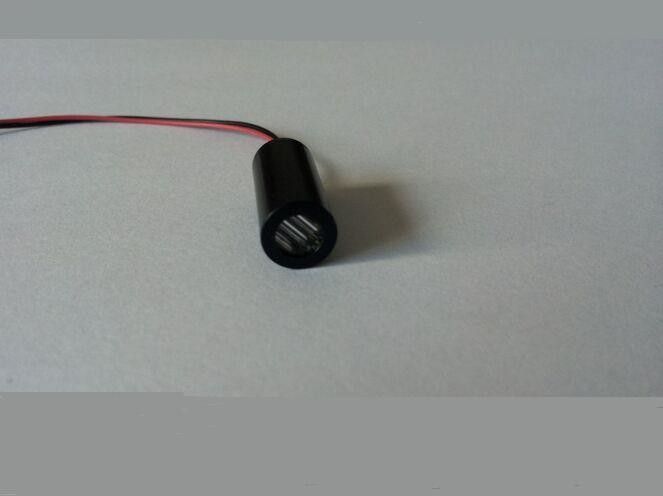

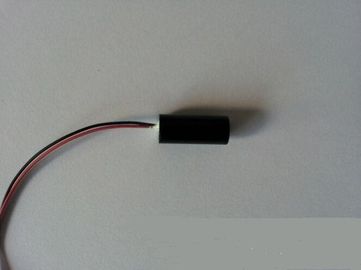

405nm 20mw Violet Line Laser Module For Electrical Tools And Leveling Instrument

Certification
Good quality Green Laser Module for sales
Good quality Green Laser Module for sales
I'm Online Chat Now

405nm 20mw Violet Line Laser Module For Electrical Tools And Leveling Instrument

China 405nm 20mw Violet Line Laser Module For Electrical Tools And Leveling Instrument supplier
405nm 20mw Violet Line Laser Module For Electrical Tools And Leveling Instrument supplier 405nm 20mw Violet Line Laser Module For Electrical Tools And Leveling Instrument supplier 405nm 20mw Violet Line Laser Module For Electrical Tools And Leveling Instrument supplier

Large Image :  405nm 20mw Violet Line Laser Module For Electrical Tools And Leveling Instrument

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS405L5-BC10

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: 9.0USD
Packaging Details: first in anti-static bag then in carton
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal , Western Union ,T/T , Moneygram
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Material: Aluminum Wavelength: 405nm
Output Power: 20mw Beam Type: Line

Such kind of products can be widely used for electrical tools, leveling instrument, orientator, range finder, laser swinger, laser level. We can provide photoelectric solutions for customers and can help design laser module to meet customers’ requirement.



Specification :



Output Wavelength:405nm/±5nm
Output Power :<20mw
Dimension:φ10×30mm
Housing Material:Brass or Aluminum
Housing Color :brass color or black
Beam Range :<1m

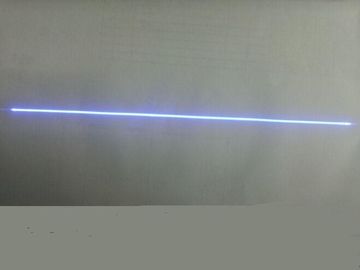

Beam Type:line(line width≤2mm at 1m distance,line beam angle(line length)36.5°(0.6m),60°(1.1m),90°(2m) 110°(2.8m) )
line drift rate :<3mm at 1m distance
Circult Control :ACC Circult(Stable Output Power )
Operating Voltage :DC=6V
Operating Current :I<40mA
Wire:150mm red and black
Working Temperature :-10℃~+50℃
Storage Temperature :-20℃~+60℃
Lifetime:>10000 hour (industrial grade)



Remark : the standard input voltage of 405nm violet line laser module is 6V , if you want the input voltage to be 3, 4.5V ,5V , you will need to buy addtion power adpater.


405nm 20mw Violet Line Laser Module For Electrical Tools And Leveling Instrument405nm 20mw Violet Line Laser Module For Electrical Tools And Leveling Instrument405nm 20mw Violet Line Laser Module For Electrical Tools And Leveling Instrument
